| Working Pressure | UNI 9561-2, DIN 8076, ISO 14236, BRL-K03 |
| Polyethylene (PE) Pipes | UNI 7611, UNI 7990, DIN 9072, DIN 8074, UNI 10910, EN 12201 |
| Threads | ISO 7, ANSIASME B1-20 |
| Flanges | ISO 2084, DIN 2501, UN 17442 |

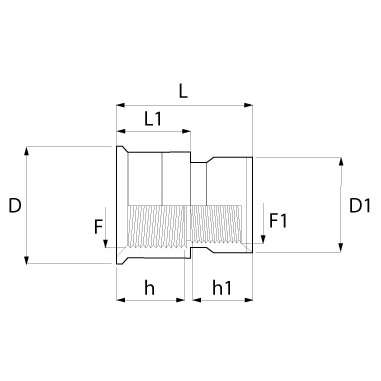

| Code | F1 (BSP) |
F2 (BSP) |
H (MM) |
H1 (MM) |
L (MM) |
L1 (MM) |
D (MM) |
D1 (MM) |
PN |
|---|---|---|---|---|---|---|---|---|---|
| 2352032 | G 3/4 | G 1/2 | 23 | 19 | 47 | 29.5 | 40 | 32 | 10 |
| 2352043 | G 1 | G 3/4 | 23 | 23 | 51 | 29.5 | 45 | 40 | 10 |
| 235253 | G 1 1/4 | G 3/4 | 25 | 23 | 53 | 32 | 56 | 40 | 10 |
| 2352064 | G 1 1/2 | G 1 | 25 | 23 | 53 | 32 | 62 | 45 | 6 |
| 2352065 | G 1 1/2 | G 1 1/4 | 25 | 25 | 55 | 32 | 62 | 56 | 6 |
