| Working Pressure | UNI 9561-2, DIN 8076, ISO 14236, BRL-K03 |
| Polyethylene (PE) Pipes | UNI 7611, UNI 7990, DIN 9072, DIN 8074, UNI 10910, EN 12201 |
| Threads | ISO 7, ANSIASME B1-20 |
| Flanges | ISO 2084, DIN 2501, UN 17442 |

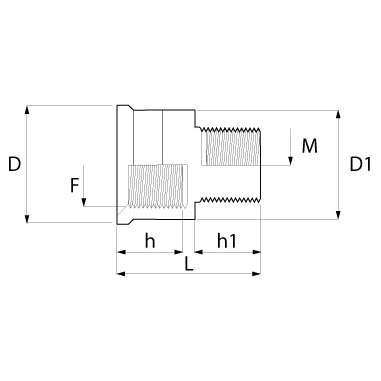

| Code | F (BSP) |
M (BSP) |
H (MM) |
H1 (MM) |
L (MM) |
D (MM) |
D1 (MM) |
PN |
|---|---|---|---|---|---|---|---|---|
| 2452023 | G 3/4 | G 1/2 | 23 | 18 | 47.5 | 40 | 32 | 10 |
| 2452045 | G 1 1/4 | G 1 | 28 | 24 | 59 | 76 | 56 | 10 |
| 2452046 | G 1 1/2 | G 1 | 28 | 24 | 59 | 76 | 62 | 6 |
| 2452056 | G 1 1/2 | G 1 1/4 | 27 | 25 | 60 | 106 | 106 | 6 |
