| Working Pressure | UNI 9561-2, DIN 8076, ISO 14236, BRL-K03 |
| Polyethylene (PE) Pipes | UNI 7611, UNI 7990, DIN 9072, DIN 8074, UNI 10910, EN 12201 |
| Threads | ISO 7, ANSIASME B1-20 |
| Flanges | ISO 2084, DIN 2501, UN 17442 |

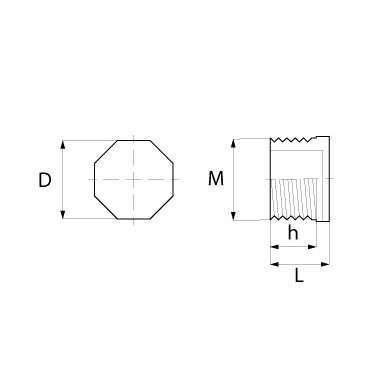

| Code | M (BSP) | F (BSP) |
H (MM) |
L (MM) | D (MM) | PN |
|---|---|---|---|---|---|---|
| 215001 | G 3/4 | G 1/2 | 15 | 27 | 30 | 10 |
| 215010 | G 1 | G 3/4 | 18.5 | 31 | 37.5 | 10 |
| 215020 | G 1 1/2 | G 1 | 20 | 30 | 50 | 6 |
| 215030 | G 2 | G 1 1/2 | 26.5 | 41 | 64 | 6 |
| 215040 | G 2 1/2 | G 2 | 28 | 42.5 | 80 | 6 |
| 215050 | G3 | G 2 1/2 | 32.5 | 50.5 | 92 | 6 |
| 215060 | G4 | G3 | 6 |
