| Working Pressure | UNI 9561-2, DIN 8076, ISO 14236, BRL-K03 |
| Polyethylene (PE) Pipes | UNI 7611, UNI 7990, DIN 9072, DIN 8074, UNI 10910, EN 12201 |
| Threads | ISO 7, ANSIASME B1-20 |
| Flanges | ISO 2084, DIN 2501, UN 17442 |

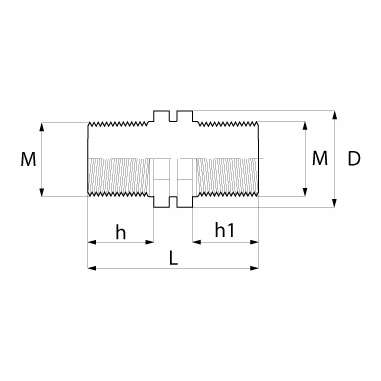

| Code | M (BSP) | H (MM) | H 1 (MM) | L (MM) | D (MM) | PN |
|---|---|---|---|---|---|---|
| 2502020 | G 1/2 | 18 | 18 | 48 | 32 | 10 |
| 2502030 | G 3/4 | 22 | 22 | 56 | 40 | 10 |
| 2502040 | G 1 | 22 | 22 | 56 | 45 | 10 |
| 2502050 | G 1 1/4 | 24 | 24 | 62 | 56 | 10 |
| 2502060 | G 1 1/2 | 24 | 24 | 62 | 62 | 6 |
| 2502070 | G2 | 27 | 27 | 68 | 76 | 6 |
